5/10 Channel 4-20MA / Thermistor Data Logger

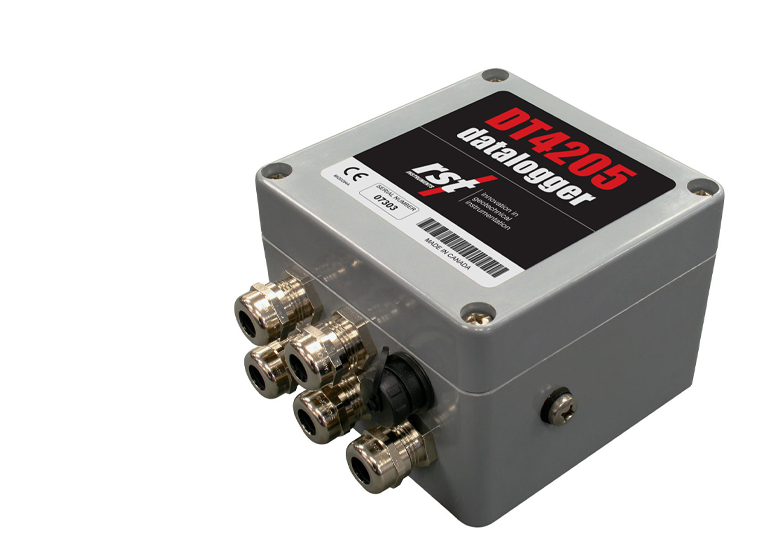

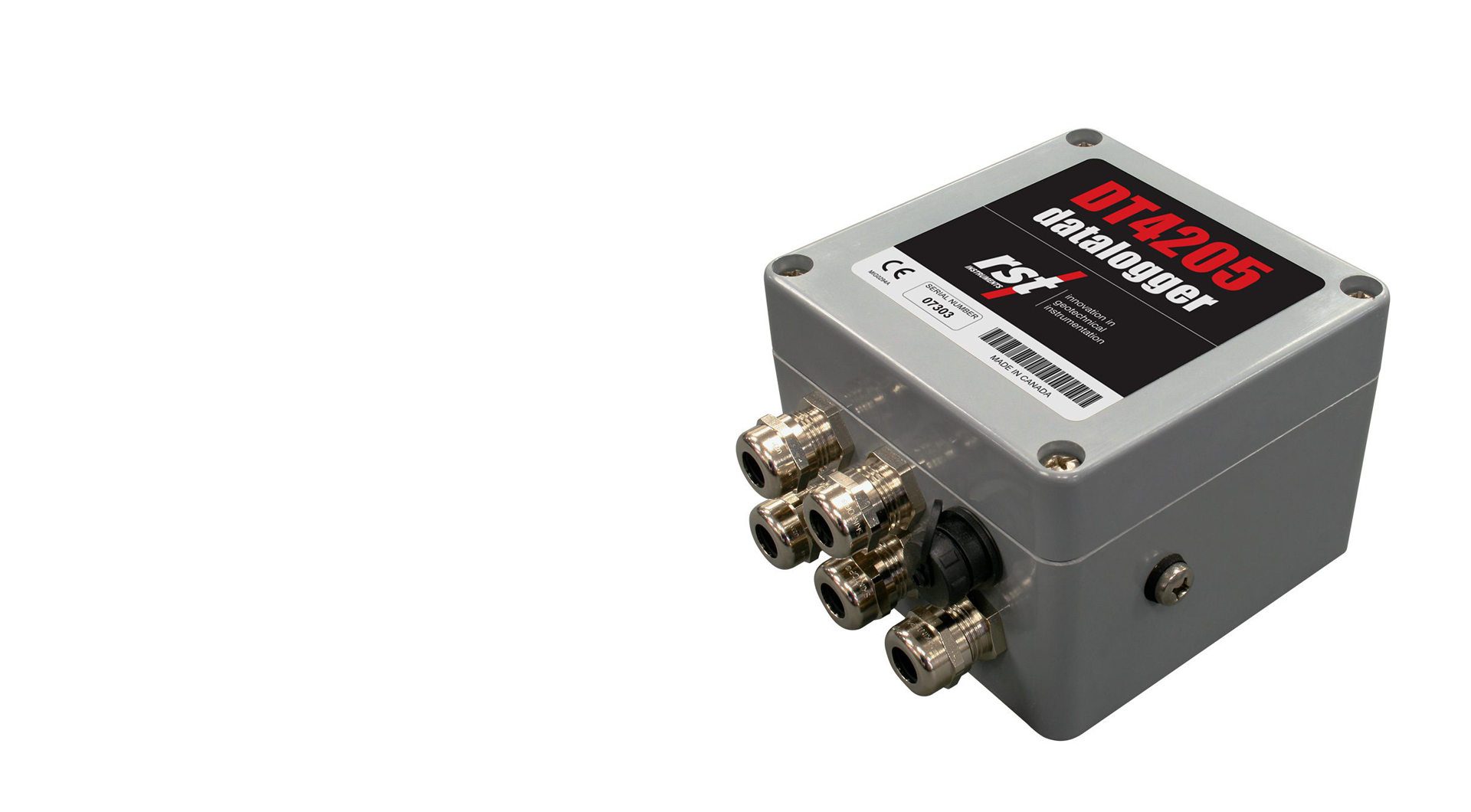

The DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger is a low cost, battery powered data logger, designed for reliable, unattended monitoring of up to 10 channels which may be any mix of 4-20mA sensors or thermistors.
Overview
Overview
The DT4205 is ideal for remote locations or instruments that require frequent reliable data recording and connects to most instruments with 4-20mA sensors.
Data logger setup and data collection is done using an Android-enabled handheld device or a laptop. DT Logger Host Software is also included.
The DT4205 can also be upgraded with an optional radio kit and antenna to incorporate it into an RSTAR or DT LINK wireless system (see separate brochures). The DT4205 can also be added to an RSTAR Affinity radio network to complete backwards compatibility requirements.
Product Features
- Battery powered (Lithium 'C' or 'D' cell) for remote sites
- Compatibility with most 4-20mA sensors
- Option for radio antenna for incorporation into an RSTAR system or DT LINK
- Weather resistant NEMA 4X (IP66) enclosure
- Compatible with most spreadsheet software
Benefits
Benefits
Data insights
Ease of use
Improve safety
Features and benefits
Features and benefits
DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger specifications
| Item | Specification |
|---|---|
| Frequency Accuracy | 0.01% Full Scale |
| Resolution | 1 part in 32,000 |
| Memory Records | Up to 120,000 records including: time, 5 channels current, 5 channels thermistor |
| Power Source | Lithium ‘C’ or ‘D’ cell battery |
| Battery Life | Up to 5 years (assuming 1 hour reading frequency) / 2 memory fills depending on temperature and use |
| Communication | USB Type B connector (radio optional) |
| Dimensions | 120 x 122 x 90 mm (4.72 x. 4.80 x 3.54 in.) |
| Temperature Range | -40°C to 60°C (-40° to 140°F) |
| Enclosure | NEMA 4X (IP66) |
Memory specifications
| Item | |
| Memory Size | 4MB |
| Data Transfer | 2,300 data points per second |
| Interval Mode | 10 seconds to 1 day |
| Variable Rate Mode | 16 user-programmable sampling rates |
| Time Format | Month / day / year Hour / minute / second |
| Memory Full Behaviour | “Wrap around” or “fill & stop” option |
