DT Link Wireless Data Collection

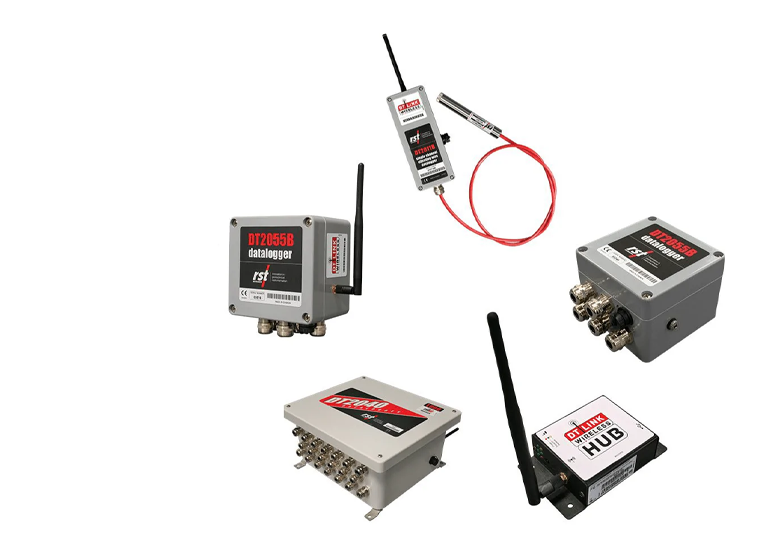

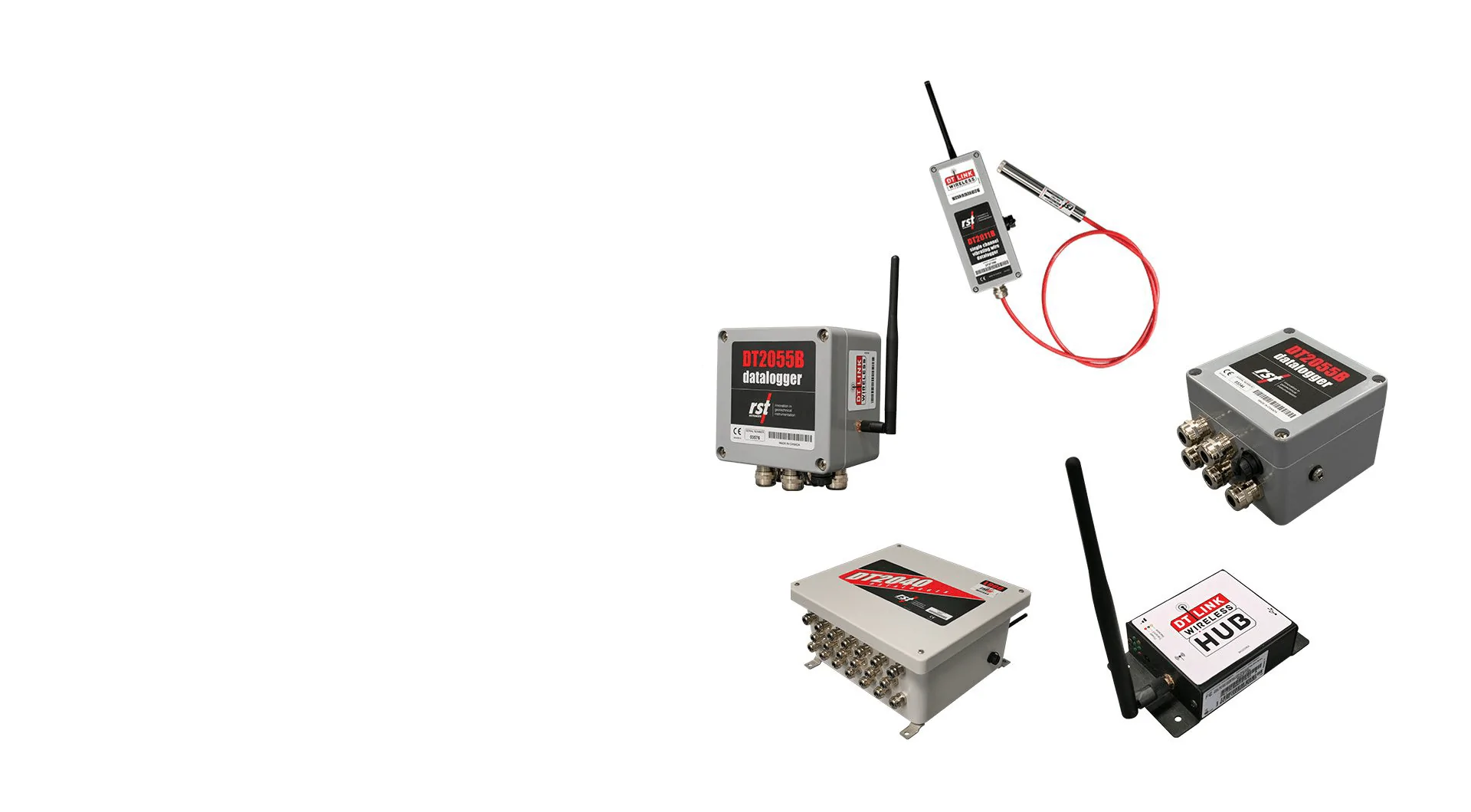

DT LINK is a local wireless connection to RST’s DT Series Data Loggers for quick collection of sensor data to a laptop.
Overview
Overview
DT LINK is ideal for data loggers situated in ‘point-to-point’ and line of sight environment where access may be limited, hazardous or disruptive. DT LINK is an alternative to USB wired connections and offers low power consumption and long battery life.
Product Features
- NEMA 4X (IP66) weather-resistant enclosures
- Low power consumption and long battery life
- Data can be gathered in seconds in hard-to-access areas
- Instant USB connection with office laptops
Benefits
Benefits
Data insights
Ease of use
Improve safety
Features and benefits
Features and benefits
DT Link Wireless specifications
| Item | SpecificationSpecification |
|---|---|
| Wireless Type | 900 MHz spread spectrum (Americas, Australia) 868 MHz (Europe) 2.4 GHz (other countries) |
| RF Power | 24 dBm (900 MHz) 13 dBm (868 MHz) 10 dBm (2.4 GHz) |
| Typical range (line of sight with basic dipole antenna, ≈1 m off ground) | 800 m (900 MHz) 500 m (868 MHz) 300 m (2.4 GHz) |
| Throughput | 380,000 Bytes/minute |
| Battery Life, D size lithium cell | 3-5 years depending on reading frequency, sensor type and quantity, weather conditions |
* NOTE: Higher gain antennas are available. Contact RST with project specifics.
