DTSAA DT ShapeArray

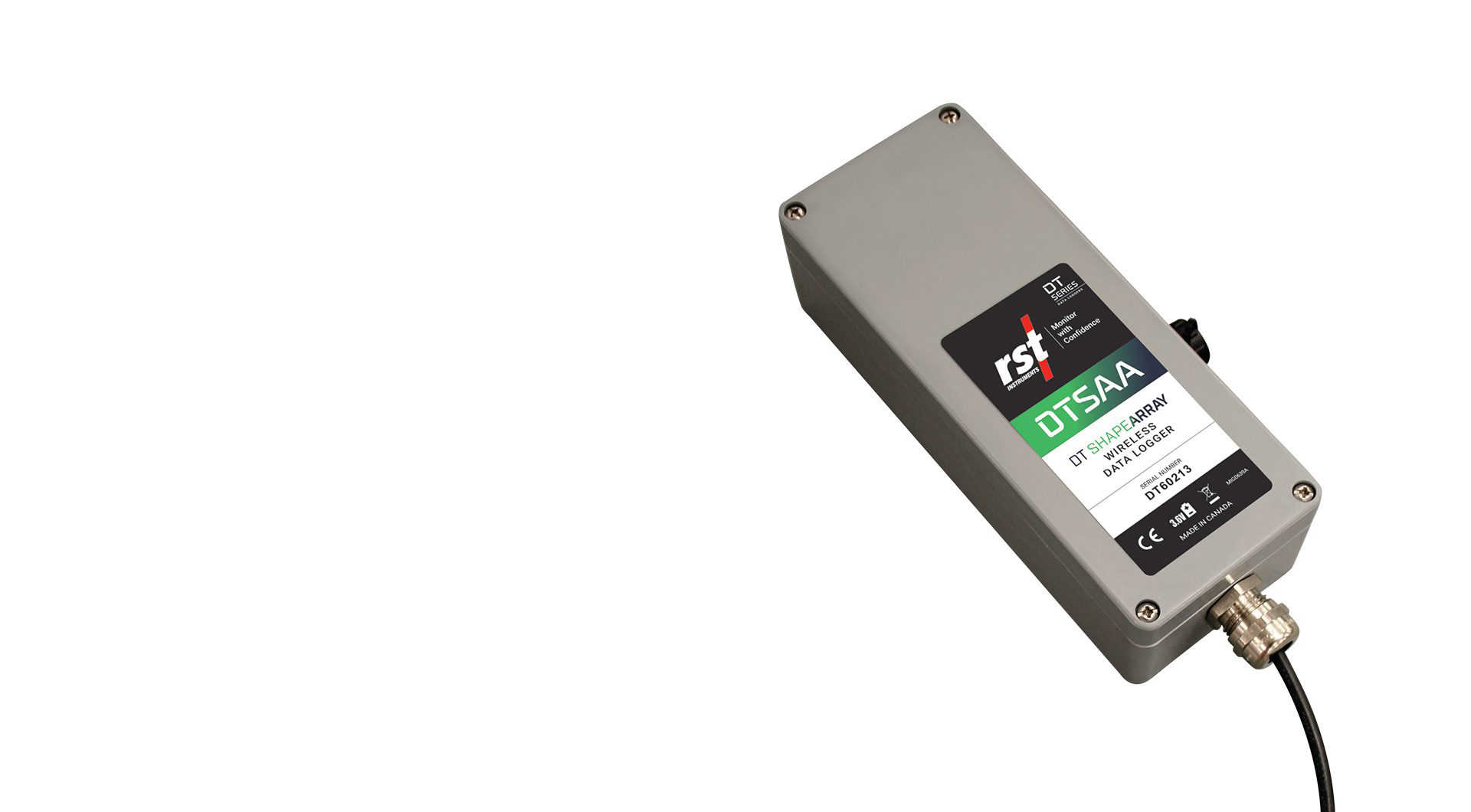

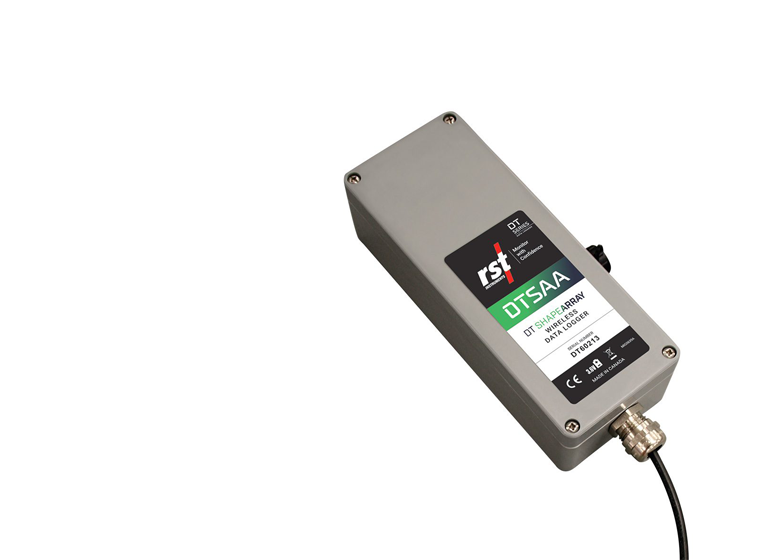

The DT ShapeArray data logger is designed to measure a single ShapeArray sensor.
Overview
Overview
The DTSAA Data Logger enables stand alone and radio-telemetry data collection of Measurand ShapeArray instruments.
ShapeArray instruments can be incorporated into a wireless, or stand alone, data collection system by using the DTSAA Data Logger. The DTSAA can read ShapeArray sensors configured in low power mode. If configured with an RSTAR radio, the data logger will transmit data to a RSTAR hub allowing automated data conversions.
The DTSAA can also be added to an RSTAR Affinity radio network to complete backwards compatibility requirements.
Product Features
- Option for radio and antenna kit for incorporation into an RSTAR network
- Battery powered for remote sites
- Weather resistant NEMA 4X (IP66) enclosure
- User-friendly Windows® host software included at no additional cost
- Data stored in .dat format compatible with SAASuite Analysis Tools
Benefits
Benefits
Data insights
Ease of use
Improve safety
Features and benefits
Features and benefits
DTSAA: DT ShapeArray Specifications
| Item | Specification |
|---|---|
| Memory Records | Up to 8,000 segment readings |
| Power Source | Lithium D Cell Primary Battery |
| Battery Life | Typically 2 years with a 100 segment ShapeArray on 1-hour reading frequency and equipped with RSTAR L900 radio. See manual for recommended battery replacement schedules. Variables include ShapeArray length, reading frequency, ambient temperature, and telemetry option. |
| Communication | USB Type B connector (radio optional) |
| Dimensions | 190 x 75 x 55 mm (7.48 x. 2.95 x 2.17 in.) |
| Temperature Range | -40°C to 60°C (-40° to 140°F) |
| Enclosure | NEMA 4X (IP66) |
| Range | Up to 14 KM (900MHz Line of Sight, see RSTAR Manual for more details) |
