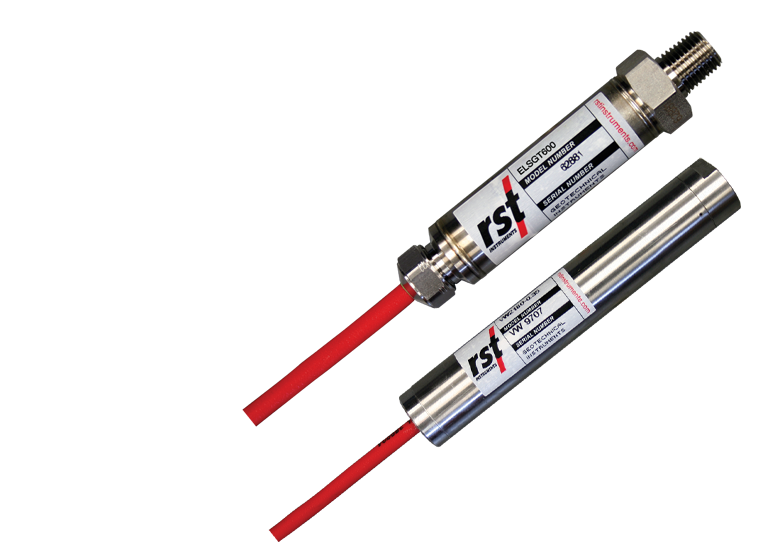

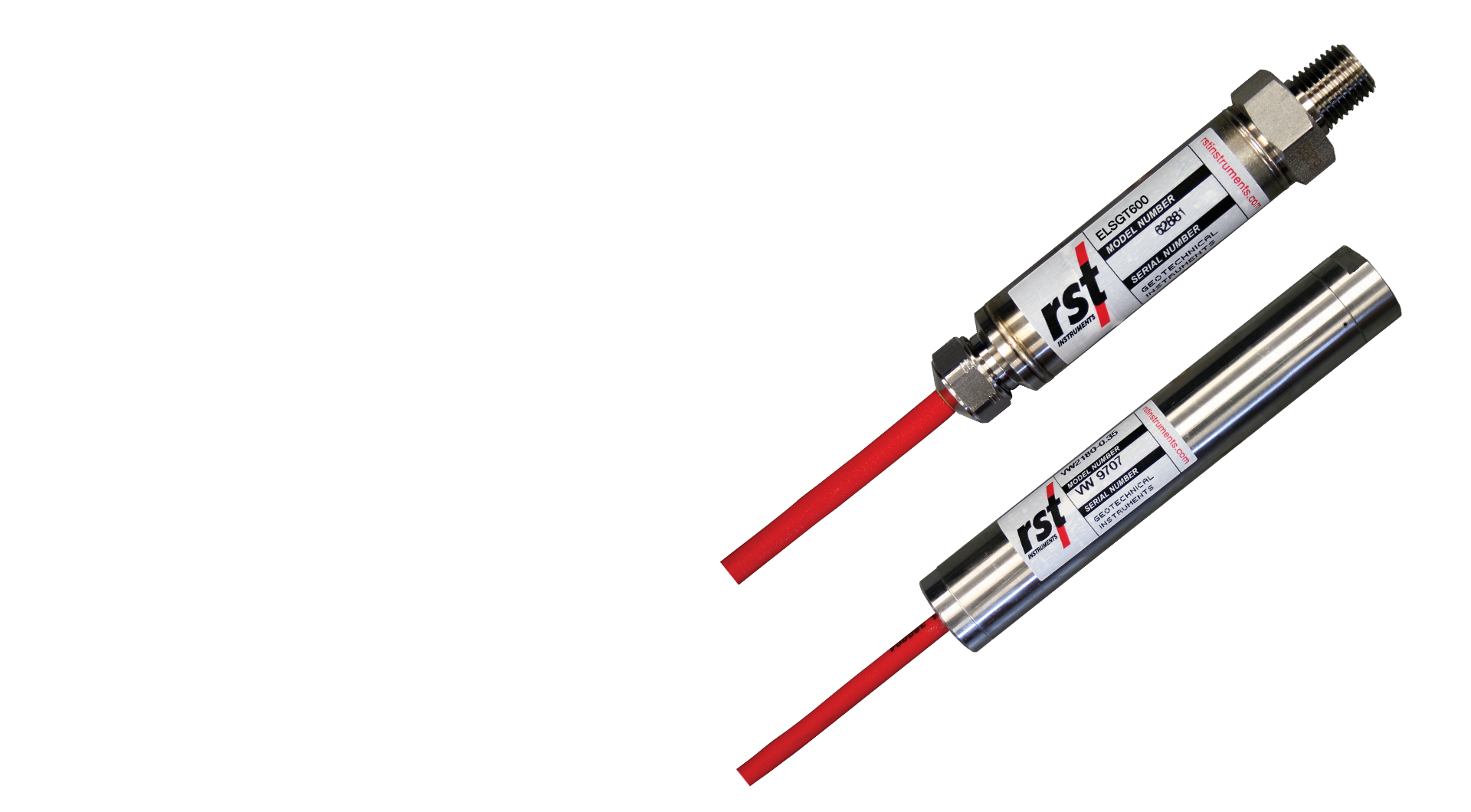

Pressure Transducers
Strain Gauge and Vibrating Wire Pressure Transducers are used for uplift measurement in the foundation of concrete dams, overflow settlement measurement in earthfill and rockfill dams, and all other applications where a rugged and reliable pressure transducer is required for measuring fluid pressure in closed circuits.
Overview
Overview
Strain Gauge and Vibrating Wire Pressure Transducers come with either a 1/4” NPT thread or a 1/4” or 1/8” NPT port, for easy connection to pipes or other components of the hydraulic circuit to be monitored. Both transducers can be read dynamically if required by the application.
Highly reliable lightning protection is standard for the strain gauge transducer and for the vibrating wire transducer.
Product features
- 1/4" NPT port or thread
- Small, rugged package withstands harsh environments
- Unique cable seal system ensures water-tight integrity
- Broad selection of pressure ranges
Instrumentation signal compatibility operates with - RST data loggers and computer data acquisition systems
Benefits
Benefits
Ease of use
Improve safety
Data insights
Features and benefits
Features and benefits
Specifications: Strain Gauge Transducer
| Item | Specification |
|---|---|
| Accuracy | ±0.1% FS |
| Standard Pressure Ranges | 0.035 MPa through 103 MPa |
| Compensated Temp. Range | -10°C to 80°C |
| Field Rangeability | Yes |
| Signal Output | 4-20 mA 0-5 VDC 0-10 VDC 4-20 mA + RS485 0-5 VDC + RS485 |
| Temperature Output | Optional |
| Wetted Materials | Standard 316L SS Polyamide Fluorocarbon |
| Electrical Termination | Sealed Cable |
| Dimensions | 109 mm X Ø25 mm |
| NPT Thread | 1/4 inch male with a 1/4” or 1/8” NPT thread |
Specifications: Vibrating Wire Pressure Transducers
| Item | Specification |
|---|---|
| Over range | 1.5 X F.S. |
| Resolution | 0.025% F.S. minimum |
| Accuracy | 0.1% F.S. |
| Standard Pressure Ranges | 0.07 through 20 MPa |
| Operating Temperature | -20 to 80°C (-4 to 176°F) |
| Diaphragm Displacement | <0.001 cc at F.S. |
| Thermal Zero Shift | <0.05% F.S./°C |
| Materials | Hermetically sealed stainless steel housing |
| Thermistor Type | NTC 3K Ohms @ 25°C |
| Thermistor Interchangeability | ±0.2°C |
| Thermistor Resolution | 0.1°C |
| Dimensions | 150 mm X 25 mm |
| NPT Thread | 1/4 inch female with a 1/4” or 1/8” NPT thread |
