RSTAR Affinity Gateway

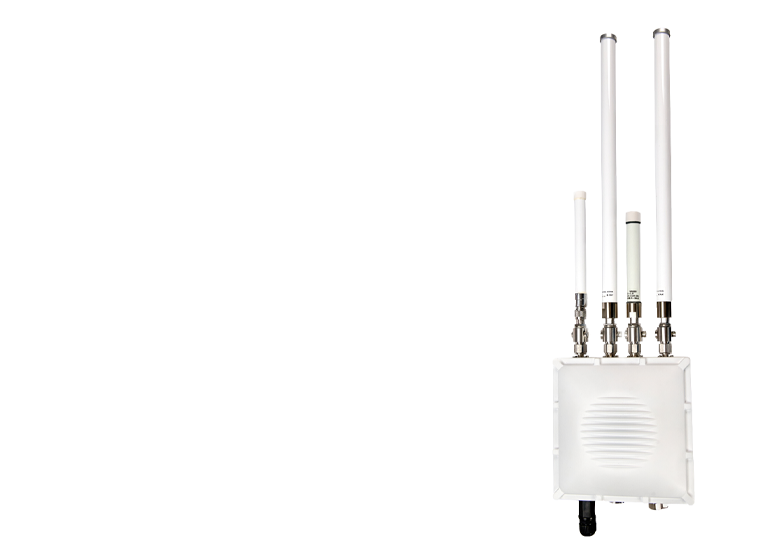

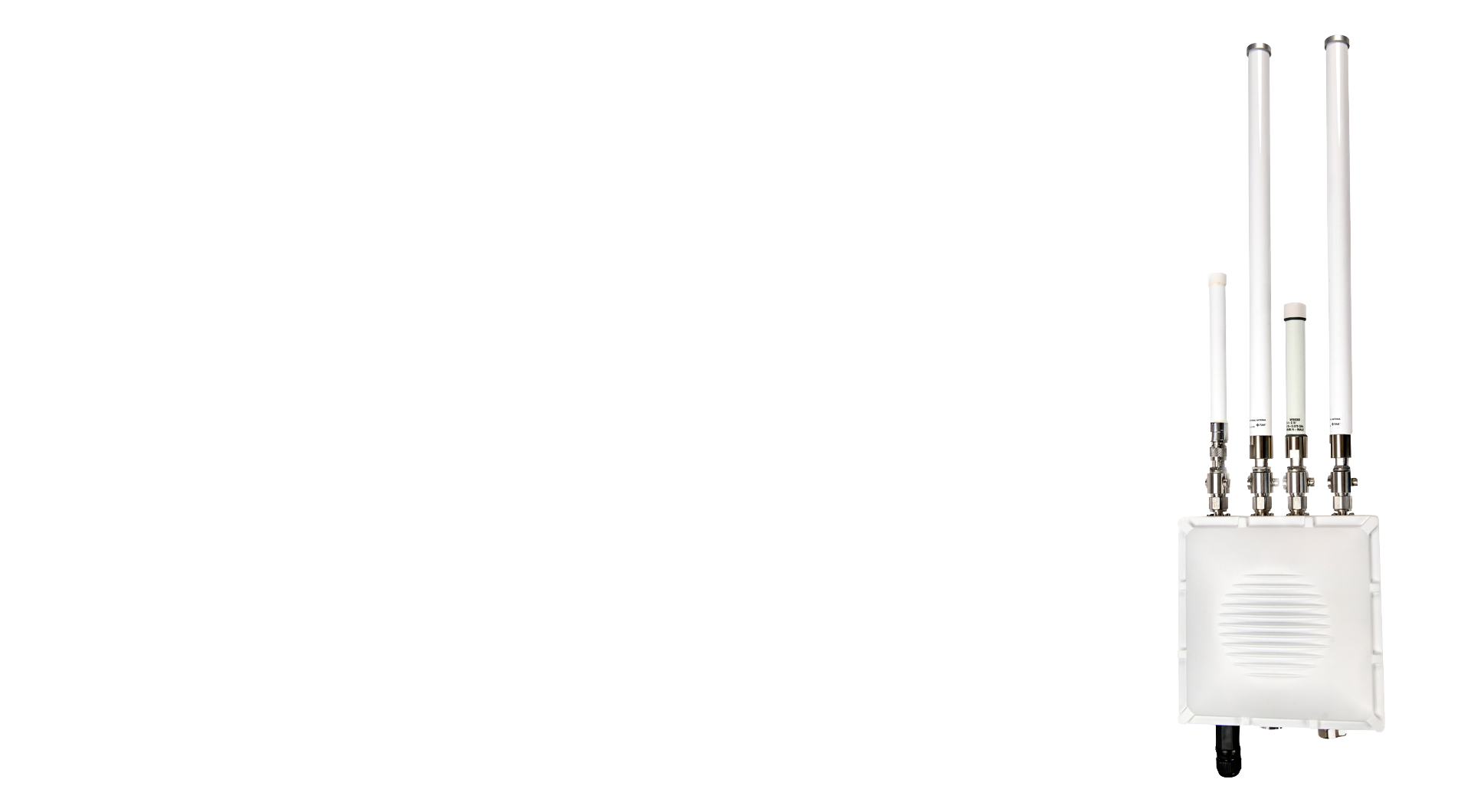

The RSTAR Affinity Gateway is easy to set up and connect to RSTAR Affinity Data Loggers for seamless communication in a wide range of geotechnical applications.
Overview
Overview
The RSTAR Affinity Gateway receives telemetry data from RSTAR Affinity Data Loggers through LoRa radio or legacy RSTAR Data Loggers, then forwards the data to the RSTAR Affinity cloud server via Ethernet, Wi-Fi, LTE, or local LoRa radio.
The RSTAR Affinity Gateway enables secure wireless communication between data loggers and the RSTAR Affinity browser-based Dashboard and Field Utility mobile application so sensor data can be transmitted and analyzed.
Product features
- Bi-directional connectivity between field devices and the RSTAR Affinity browser-based UI dashboard and mobile application.
- Flexible connectivity including Ethernet, cellular, and Wi-Fi.
- A pole mount is included with the gateway enclosure. An optional wall mount is also available.
- RSTAR Affinity is OpenAPI 3.0 compliant.
Benefits
Benefits
Data insights
Ease of use
Improve safety
Features and benefits
Features and benefits
RSTAR Affinity Gateway physical specifications
| Dimensions Excluding Antenna(s) | 220 mm (L) x 220 mm (W) x 104 mm (H) |
| Dimensions Including Antenna(s) | 1150 mm (L) x 220 mm (W) x 104 mm (H) |
| Housing Material | Die-cast aluminum |
| Ingress Protection Marking | IP67 rated |
| Mounting Options | Pole or wall mount |
| ISM Antenna Options | 868 MHz: 3dBi antenna 900 MHz: 5.8dBi antenna 900 MHz: 8dBi antenna |
General specifications
| Temperature Operating Range | Ambient temperatures from -40°C to 60°C See Junction Box options for power supply temperature range |
Power specifications
| Power Supply* | 12 VDC PoE Input PoE Input: 12-48V 120V/240V: Requires AC Junction Box Solar Power: Requires Solar Junction Box |
Cellular specifications
| Frequency Bands for LTE-FDD | B1, B2, B3,B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| Frequency Bands for LTE-FDD | B38, B39, B40, B41 |
| Frequency Bands for WCDMA | B1, B2, B4, B5, B6, B8, B19 |
| Frequency Bands for GSM | B2, B3, B5, B8 |
| Output Power | 23~33dBm±2dB |
| Maximum Antenna Gain | 3 dBi |
Internet specifications
| Standard Configuration | LTE/WiFi/Ethernet/Satellite |
Field connectivity
| Region | LoRaWAN EU868 LoRaWAN EU433 LoRaWAN US915 LoRaWAN AS923-1/2/3/4 LoRaWAN AU915Refer to RST for the best frequency for your region. |
RSTAR radio specifications
| Operating Frequency (country dependent) | 900 MHz, 868 MHz, 2.4 GHz spread spectrum band |
| Outdoor Range | Up to 15 km (at 900 MHz) in open country, depending on frequency and antenna |
| Maximum Nodes | Dependant on measurement frequencies and instrument types |
Junction box option
| Standard Temperature AC Power (Option 1) | Input: 120/240 V Temperature range: |
| Extended Temperature AC Power (Option 2) | Input: 120/240VAC Output: 12VDC PoE External 100AHr Battery Temperature range: -40°C to 60°C |
| Solar Power | Input: Up to 2x 110W Solar Output: 12VDC PoE External 100AHr Batt. |
Software

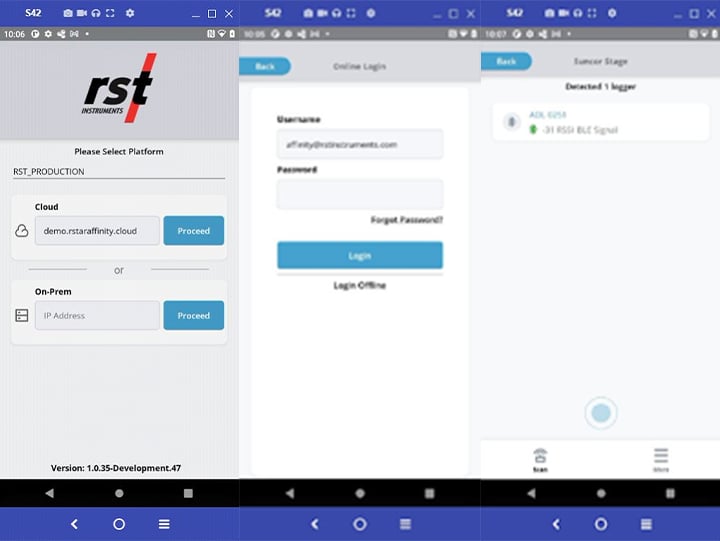

RSTAR Affinity Field App
Use the link below to download the RSTAR Affinity Field App for use with the RSTAR Affinity Gateway.
