All 3 configurations listed below use an RST Reed Switch Probe to provide a reading in the magnetic zones allocated along the length of the borehole.
Installations are typically vertical, however, horizontal applications may be accommodated utilizing installation rods to insert the probe.

Magnetic Settlement System With Flush Threaded Pvc Pipe:
Installation as a single-purpose device to monitor settlement/heave only.

Magnetic Settlement System With Inclinometer Casing:
Installed in conjunction with RST Flush-coupled Inclinometer Casing to obtain both vertical and horizontal deformation data from a single installation. If larger amounts of settlement/heave are anticipated, this configuration may also incorporate a Corrugated Sleeving with Settlement Magnetic Rings which will accommodate RST’s Inclinometer Casing of 70 mm (2.75″) and 85 mm (3.34″) OD sizes.

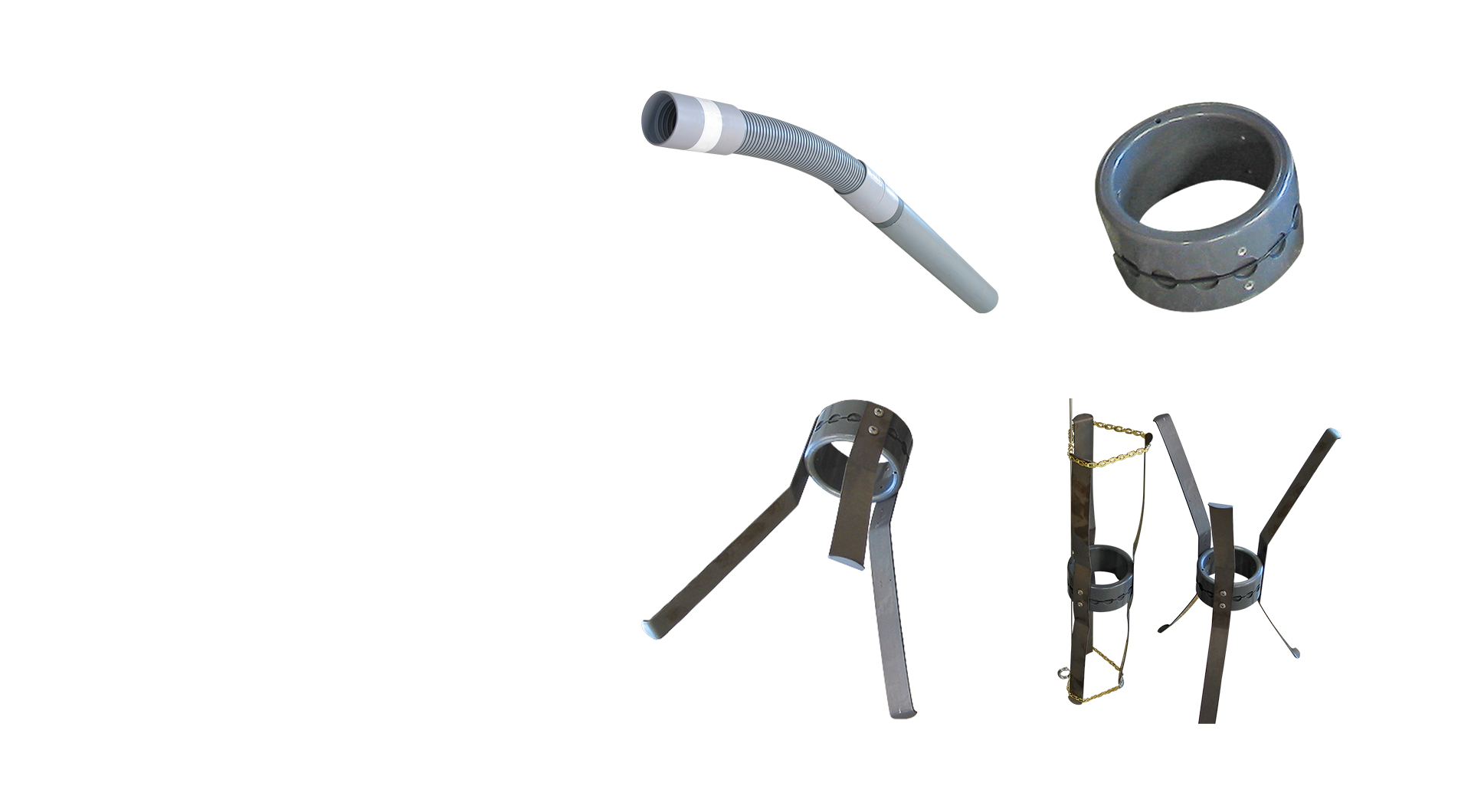

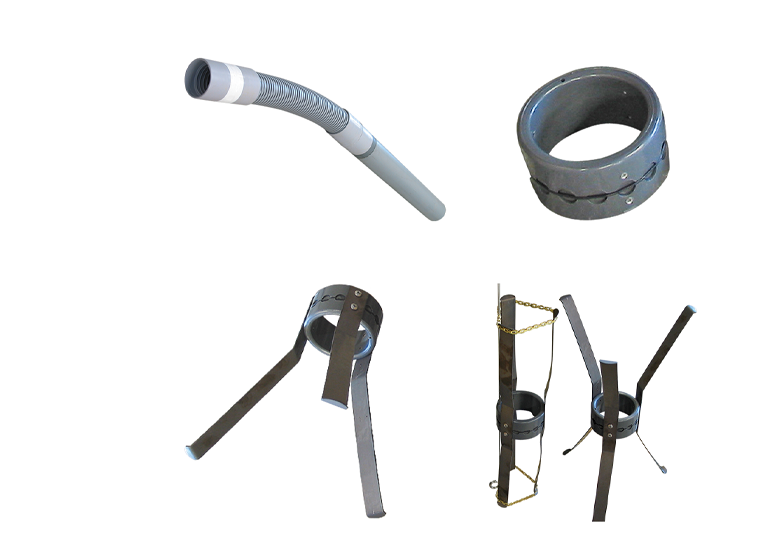

Magnetic Settlement System With 1.5″ Corrugated Pipe:
A more inclusive system which contains pre-installed magnets along a 1.5″ ID corrugated pipe. This corrugated configuration is also more ideal for situations where larger amounts of settlement/heave are anticipated.

Product features

• Simple, yet accurate principle of operation
• High performance ceramic magnets
• High accuracy, non-stretch tape
• Compatible with RST inclinometer casing
• Low cost
