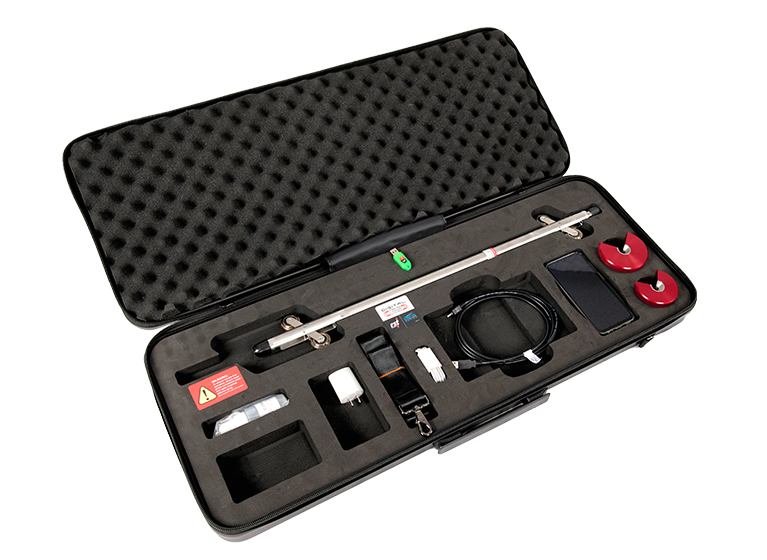

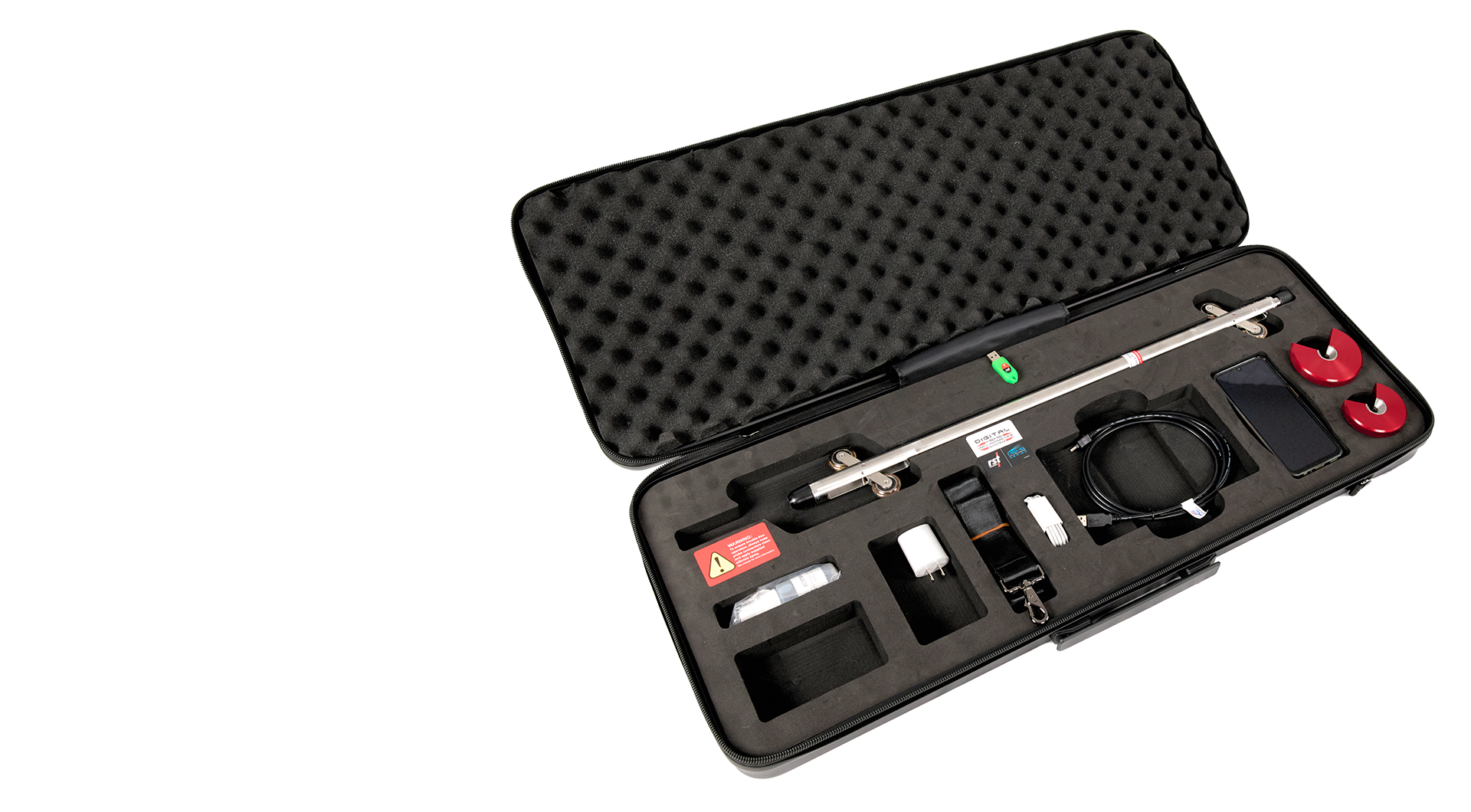

Digital Vertical Inclinometer System
For measuring any lateral ground movement via inclinometer casing, the Digital Vertical Inclinometer System from RST Instruments Ltd. was the first, and is still among the best, Digital MEMS Inclinometer System available.
Overview
Overview
Since 2003, RST’s Inclinometer systems have had the shortest overall length available for a given base length compared to competitive inclinometers.
With a minimum casing bend radius, RST’s Digital Vertical Inclinometer System can still traverse a smaller bend radius than all other inclinometers available in the industry. A local microcontroller in the probe manages data collection, applies precision digital calibration, and provides a fast settling time which results in very efficient data collection.
The RST Digital Inclinometer App functions as the data collector when installed on a Bluetooth enabled Android device. The app is designed for field personnel to easily configure and collect readings from the inclinometer probe.
Product features:
- Can traverse a smaller radius bend than all other inclinometers
- Hot swap capability with RST's Digital Horizontal and/or Spiral Inclinometer Probes
- Up to 30 hours of continuous use
- Can be charged without removing the battery
- Least amount of connector interference
Benefits
Benefits
Data insights
Ease of use
Improve safety
Features and benefits
Features and benefits
Inclinometer Specifications
| Item | Metric system | Imperial system |
|---|---|---|
| Wheelbase | 0.5 m | 24 in |
| Probe diameter | 25.4 mm | 1.00 in |
| Probe length (including connector) | 719 mm | 32.6 in |
| Probe weight | 1.06 kg | 2.45 lbs |
| Probe material | Stainless steel | Stainless steel |
| Full-scale range (other ranges available) | ±30 degrees | ±30 degrees |
| Data resolution | 0.005 mm per 500 mm | 0.00002 ft per 2 ft |
| Memory | >1,000,000 readings | >1,000,000 readings |
| Repeatability | ±0.002° | ±0.002° |
| System Accuracy | ±2 mm per 25 m | ±0.1 in. per 100 ft |
| Axis alignment | Digitally nulled | Digitally nulled |
| Temperature rating | -40 to +70°C | -40 to +158°F |
| Sensor Type | MEMS Accelerometer, Biaxial |
Cable Specifications
| Item | Metric system | Imperial system |
|---|---|---|
| Cable diameter | 6.40 mm (±0.1 mm) | 0.25 in |
| Cable weight | 2.3 kg / 50 m | 3.1 lbs / 100 ft |
| Cable breaking strength | 1.8 kN | 400 lbs |
| Cable reinforcement | Kevlar® ‡ | Kevlar® ‡ |
| Cable jacket | Polyurethane | Polyurethane |
| Cable stretch (suspended in 50 m dry borehole) | 7.0 mm | 0.27 in |
Cable Reel Specifications
| Item | Metric system | Imperial system |
|---|---|---|
| Up to 75 m cable reel diameter | 310 mm | 12.2 in |
| 100 to 200 m cable reel diameter | 380 mm | 15 in |
| +225 m cable reel diameter | 460 mm | 18 in |
| Reel weight with 50 m (100 ft.) cable | 4.7 kg | 8.4 lbs |
